Ultrasonic Digital Thickness Gauge, Model 1/IS Intrinsically Safe by Cygnus

Ultrasonic Digital Thickness Gauge, Model 1/IS Intrinsically Safe by Cygnus
0.00৳
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features

  • Certified Intrinsically Safe to:
    ATEX
    {Ex} I M 1 Ex ia I Ma (Ta = 0 to 45 C)
    {Ex} II 1 G Ex ia IIC T6 Ga (Ta = 0 to 45 C)

    CSA Class 1 Division 1 Group A, B, C & D

  • For use in Zone 0, Zone 1 hazardous areas
  • Also approved for use in MINES
  • No plant shutdown or hot work permit necessary
  • Heavy duty sealed unit - IPX5 and IPX7 rated
  • Rugged, durable, shock-proof construction
  • Stable calibration - linear accuracy - no zero adjustment
  • Self verification of the measurements to ensure accuracy
  • Bright LED display with polarised filter
  • Two rechargeable battery packs with charger
  • Displays sound velocity settings
  • Echo strength indicator to aid measurement
  • Various probe options
  • Right angle probe is available for use in areas of restricted access
  • Probe frequency selectable
  • Metric / Imperial switchable
  • Low battery warning


Benefits

  • Measures remaining metal thickness on corroded and coated structures
  • All measurements are error checked using 3 return echoes to give repeatable, reliable results
  • Accepted by all major classification societies
  • Greatly reduces inspection time and costs
  • Echo strength indicator to aid measurement.

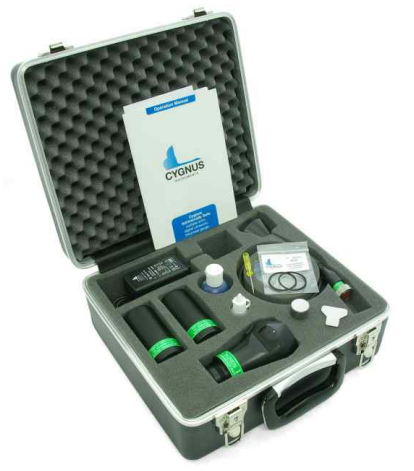

Kit Content

  • Instrument
  • heavy duty remote 2.25 MHz x 1/2")
    diameter probe
  • nose cone tommy bar
  • probe locking ring key
  • 2 rechargeable batteries
  • battery charger
  • spare membranes
  • membrane couplant
  • O rings
  • steel test block
  • calibration jumper lead
  • calibration trim tool
  • hex key
  • ultrasonic couplant
  • operation manual
  • carry case.
